If you want to practice data structure and algorithm programs, you can go through 100+ java coding interview questions.
This is part of java binary tree tutorial.
In this post, we will see about Reverse Level Order binary tree traversal in java. In previous post, we have already seen Level order traversal. In reverse level order traversal, we will visit last level first, then second last and eventually first level.
Reverse Level Order traversal:

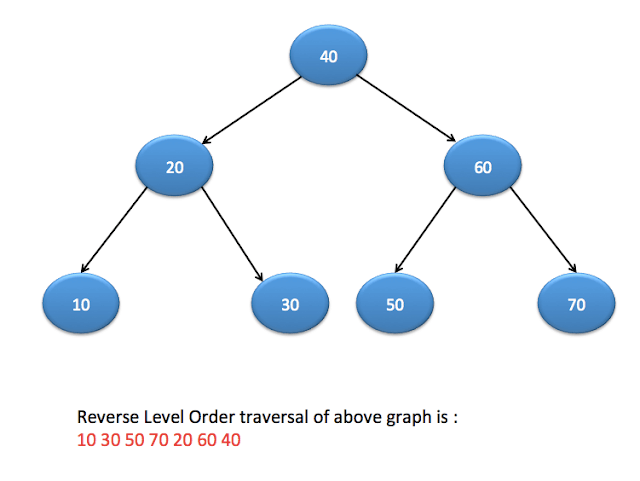

Reverse Level order traversal of below binary tree will be:
We will use stack  for Reverse Level Order traversal.
Steps for Reverse Level order traversal algorithm:
- Create empty
queue
and push root node to it. - Do the following when queue is not empty
Pop
a node fromqueue
and print itPush right child
of popped node toqueue
if not nullPush left child
of popped node toqueue
if not null- Push popped node to
stack
Pop
node fromstack
and print it
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 |
// prints in reverse level order public static void reverseLevelOrderTraversal(TreeNode startNode) { Queue<TreeNode> queue=new LinkedList<>(); Stack<TreeNode> stack=new Stack<>(); queue.add(startNode); while(!queue.isEmpty()) { TreeNode tempNode=queue.poll(); if(tempNode.right!=null) queue.add(tempNode.right); if(tempNode.left!=null) queue.add(tempNode.left); stack.push(tempNode); } while(!stack.empty()) System.out.print(stack.pop().data+" " ); } |
Lets say your binary tree is :
So Reverse Level Order traversal will work as below:
Lets create java program :
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 |
package org.arpit.java2blog.binarytree; import java.util.LinkedList; import java.util.Queue; import java.util.Stack; public class BinaryTreeReverseLevelOrder { public static class TreeNode { int data; TreeNode left; TreeNode right; TreeNode(int data) { this.data=data; } } // prints in reverse level order public static void reverseLevelOrderTraversal(TreeNode startNode) { Queue<TreeNode> queue=new LinkedList<>(); Stack<TreeNode> stack=new Stack<>(); queue.add(startNode); while(!queue.isEmpty()) { TreeNode tempNode=queue.poll(); if(tempNode.right!=null) queue.add(tempNode.right); if(tempNode.left!=null) queue.add(tempNode.left); stack.push(tempNode); } while(!stack.empty()) System.out.print(stack.pop().data+" " ); } public static void main(String[] args) { BinaryTreeReverseLevelOrder bi=new BinaryTreeReverseLevelOrder(); // Creating a binary tree TreeNode rootNode=createBinaryTree(); System.out.println("Reverse Level Order traversal of binary tree will be:"); reverseLevelOrderTraversal(rootNode); } public static TreeNode createBinaryTree() { TreeNode rootNode =new TreeNode(40); TreeNode node20=new TreeNode(20); TreeNode node10=new TreeNode(10); TreeNode node30=new TreeNode(30); TreeNode node60=new TreeNode(60); TreeNode node50=new TreeNode(50); TreeNode node70=new TreeNode(70); rootNode.left=node20; rootNode.right=node60; node20.left=node10; node20.right=node30; node60.left=node50; node60.right=node70; return rootNode; } } |
Run above program and you will get following output:
10 30 50 70 20 60 40
