Spring boot @ConfigurationProperties

Table of Contents

Maven dependencies:
Relaxed binding
Custom property file
Validation

In this tutorial, we are going to see about Spring boot @ConfigurationProperties annotation.

Spring boot @ConfigurationProperties allows you to map properties values with java object easily.

Let’s first see the normal mapping first. Let’s say you have properties file below.

application.properties


org.blogname=java2blog
org.host=hostEasy

org.blogname=java2blog

org.host=hostEasy

You can access above property file as below.


package org.arpit.java2blog;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class BlogDetails {

    @Value("${org.blogName}")
    String blogName;

    @Value("${org.host}")
    String host;

    public String getBlogName() {
        return blogName;
    }

    public void setBlogName(String blogName) {
        this.blogName = blogName;
    }

    public String getHost() {
        return host;
    }

    public void setHost(String host) {
        this.host = host;
    }
}

package org.arpit.java2blog;

import org.springframework.beans.factory.annotation.Value;

import org.springframework.stereotype.Component;

@Component

public class BlogDetails {

@Value("${org.blogName}")

String blogName;

@Value("${org.host}")

String host;

public String getBlogName() {

return blogName;

}

public void setBlogName(String blogName) {

this.blogName = blogName;

}

public String getHost() {

return host;

}

public void setHost(String host) {

this.host = host;

}

So, you can use @Value to get property value from application.properties but it might be tedious to use @Value everywhere,Spring boot provides @ConfigurationProperties to map properties value to java Object.

Let’s understand with the help of example.

Step 1: Create a dynamic web project using maven in eclipse named “SpringBootHelloWorldExample”.

Maven dependencies:

Step 2: Change pom.xml as below:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.arpit.java2blog</groupId>
    <artifactId>SpringBootConfigurationPropertiesExample</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>SpringBootConfigurationPropertiesExample</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

<groupId>org.arpit.java2blog</groupId>

<artifactId>SpringBootConfigurationPropertiesExample</artifactId>

<version>0.0.1-SNAPSHOT</version>

<name>SpringBootConfigurationPropertiesExample</name>

<description>Demo project for Spring Boot</description>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-parent</artifactId>

<version>2.0.3.RELEASE</version>

</parent>

<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

<java.version>1.8</java.version>

</properties>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter</artifactId>

</dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-test</artifactId>

</dependency>

</dependencies>

<build>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-maven-plugin</artifactId>

</plugin>

</plugins>

</build>

</project>

step 3: Create a package named "org.arpit.java2blog" and class named ServerDetails


package org.arpit.java2blog;

import java.util.Arrays;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@ConfigurationProperties(prefix="com.server")
public class ServerDetails {

    String url;
    String name;
    int[] port;
    Application application;

    public static class Application
    {
        String userName;
        String password;
        public String getUserName() {
            return userName;
        }
        public void setUserName(String userName) {
            this.userName = userName;
        }
        public String getPassword() {
            return password;
        }
        public void setPassword(String password) {
            this.password = password;
        }

    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int[] getPort() {
        return port;
    }

    public void setPort(int[] port) {
        this.port = port;
    }

    public Application getApplication() {
        return application;
    }

    public void setApplication(Application application) {
        this.application = application;
    }

    @Override
    public String toString() {
         return "Server Details{" +
                 "name='" + name + '\'' +
                 ", url='" + url + '\'' +
                 ", port='" + Arrays.toString(port) + '\'' +
                 ", username='" + application.getUserName()+ '\'' +
                 ", password='" + application.getPassword()+ '\'' +
                 '}';
    }
}

package org.arpit.java2blog;

import java.util.Arrays;

import org.springframework.boot.context.properties.ConfigurationProperties;

import org.springframework.context.annotation.Configuration;

@Configuration

@ConfigurationProperties(prefix="com.server")

public class ServerDetails {

String url;

String name;

int[] port;

Application application;

public static class Application

{

String userName;

String password;

public String getUserName() {

return userName;

}

public void setUserName(String userName) {

this.userName = userName;

}

public String getPassword() {

return password;

}

public void setPassword(String password) {

this.password = password;

}

public String getUrl() {

return url;

}

public void setUrl(String url) {

this.url = url;

}

public String getName() {

return name;

}

public void setName(String name) {

this.name = name;

}

public int[] getPort() {

return port;

}

public void setPort(int[] port) {

this.port = port;

}

public Application getApplication() {

return application;

}

public void setApplication(Application application) {

this.application = application;

}

@Override

public String toString() {

return "Server Details{" +

"name='" + name + '\'' +

", url='" + url + '\'' +

", port='" + Arrays.toString(port) + '\'' +

", username='" + application.getUserName()+ '\'' +

", password='" + application.getPassword()+ '\'' +

'}';

}

step 4: Make changes to application.properties to add below properties.


org.blogName=java2blog
org.host=hostEasy

com.server.url= dummy.xyz.com
com.server.name= amazonEc2
com.server.port[0]=8080
com.server.port[1]=8081

com.server.application.username = admin
com.server.application.password = admin123

org.blogName=java2blog

org.host=hostEasy

com.server.url= dummy.xyz.com

com.server.name= amazonEc2

com.server.port[0]=8080

com.server.port[1]=8081

com.server.application.username = admin

com.server.application.password = admin123

step 5: Create Spring boot main class.


package org.arpit.java2blog;

import javax.annotation.PostConstruct;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;

@SpringBootApplication
public class SpringBootExample {

    @Autowired
    ServerDetails serverDetails;

    public static void main(String[] args) {
        ConfigurableApplicationContext run = SpringApplication.run(SpringBootExample.class, args);
    }

    @PostConstruct
    public void init() {

        System.out.println(serverDetails.toString());

    }
}

package org.arpit.java2blog;

import javax.annotation.PostConstruct;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.context.ConfigurableApplicationContext;

@SpringBootApplication

public class SpringBootExample {

@Autowired

ServerDetails serverDetails;

public static void main(String[] args) {

ConfigurableApplicationContext run = SpringApplication.run(SpringBootExample.class, args);

}

@PostConstruct

public void init() {

System.out.println(serverDetails.toString());

}

As you can see, we have used @Autowired to inject ServerDetails to SpringBootExample.

Step 6: Run the application.

When you run above example, you will get below output.

. ____ _ __ _ _
/\\ / ___’_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | ‘_ | ‘_| | ‘_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
‘ |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.0.3.RELEASE)

2018-07-14 23:53:47.766 INFO 67832 — [ main] org.arpit.java2blog.SpringBootExample : Starting SpringBootExample on apples-MacBook-Air.local with PID 67832 (/Users/apple/Downloads/SpringBootConfigurationPropertiesExample/target/classes started by apple in /Users/apple/Downloads/SpringBootConfigurationPropertiesExample)
2018-07-14 23:53:47.774 INFO 67832 — [ main] org.arpit.java2blog.SpringBootExample : No active profile set, falling back to default profiles: default
2018-07-14 23:53:47.901 INFO 67832 — [ main] s.c.a.AnnotationConfigApplicationContext : Refreshing org.springframework.context.annotation.AnnotationConfigApplicationContext@429bd883: startup date [Sat Jul 14 23:53:47 IST 2018]; root of context hierarchy
Server Details{name=’amazonEc2′, url=’dummy.xyz.com’, port='[8080, 8081]’, username=’admin’, password=’admin123′}
2018-07-14 23:53:49.000 INFO 67832 — [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup
2018-07-14 23:53:49.024 INFO 67832 — [ main] org.arpit.java2blog.SpringBootExample : Started SpringBootExample in 2.252 seconds (JVM running for 3.406)
2018-07-14 23:53:49.028 INFO 67832 — [ Thread-2] s.c.a.AnnotationConfigApplicationContext : Closing org.springframework.context.annotation.AnnotationConfigApplicationContext@429bd883: startup date [Sat Jul 14 23:53:47 IST 2018]; root of context hierarchy
2018-07-14 23:53:49.030 INFO 67832 — [ Thread-2] o.s.j.e.a.AnnotationMBeanExporter : Unregistering JMX-exposed beans on shutdown

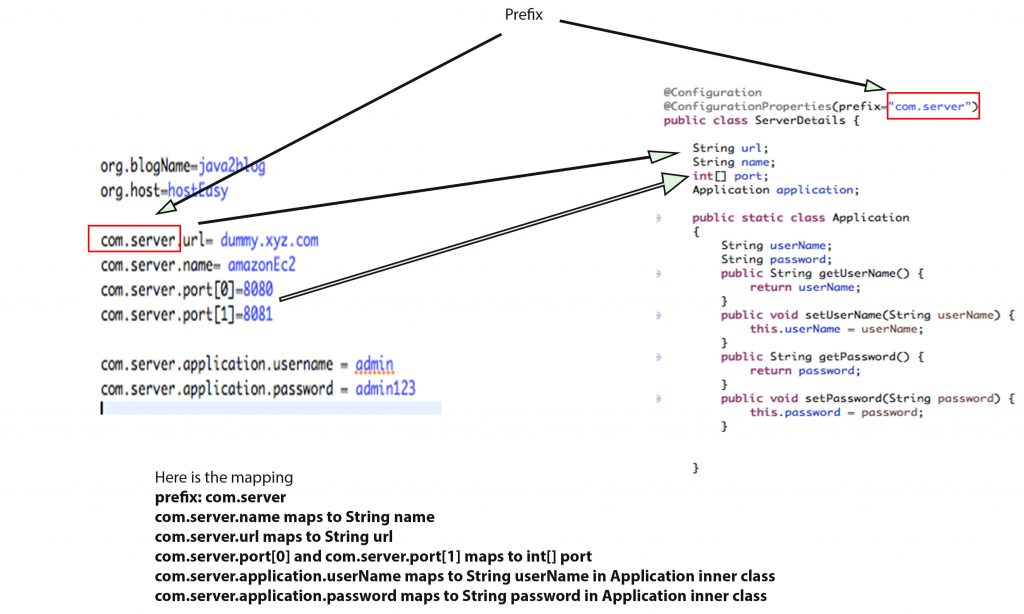

Here is the picture which will help you understand @ConfigurationProperties better.

Relaxed binding

One of the interesting feature of Spring boot is relaxed binding.
for com.server.application.username, below are valid spring boot bindings.

com.server.application.user_name(with _)
com.server.application.user-name(with -)
com.server.application.USER_NAME(with uppercase)

Custom property file

You can use custom property as well instead of application.property using @PropertySource annotation.


package org.arpit.java2blog;

import java.util.Arrays;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@PropertySource("classpath:custom.properties")
@ConfigurationProperties(prefix="com.server")
public class ServerDetails {
..
}

package org.arpit.java2blog;

import java.util.Arrays;

import org.springframework.boot.context.properties.ConfigurationProperties;

import org.springframework.context.annotation.Configuration;

@Configuration

@PropertySource("classpath:custom.properties")

@ConfigurationProperties(prefix="com.server")

public class ServerDetails {

}

Validation

We can use JSR-303 Validation API to validate properties.You need to add below dependency.


<dependency>
    <groupId>org.hibernate</groupId>
   <artifactId>hibernate-validator</artifactId>
   <version>6.0.10.Final</version>
   <relativePath/>
</dependency>

<groupId>org.hibernate</groupId>

<artifactId>hibernate-validator</artifactId>

<version>6.0.10.Final</version>

</dependency>

For example:
Let’s say you want to restrict username from 5 to 8 characters, you can use @Length annotaton as below.


          @Length(max = 8, min = 5)
        String userName;

@Length(max = 8, min = 5)

String userName;

If you change userName to adam


com.server.application.username = adam

com.server.application.username = adam

You will get below validation error.

Property:.com.server.application.username
Value: adam
Reason: length must be between 5 and 8

Download source code SpringBootConfigurationPropertiesExample

That’s all about Spring boot @ConfigurationProperties.

Was this post helpful?

Let us know if this post was helpful. Feedbacks are monitored on daily basis. Please do provide feedback as that\'s the only way to improve.

Spring boot @ConfigurationProperties

Maven dependencies:

Relaxed binding

Custom property file

Validation

Was this post helpful?

Author

Leave a Reply Cancel reply

Categories

Popular Posts

Let’s be Friends

Maven dependencies:

Relaxed binding

Custom property file

Validation

Was this post helpful?

Related posts:

Share this

Author

Leave a Reply Cancel reply

Let’s be Friends
